Target Boards & Firmware

Build MSP430 Build nRF52 QA-Tests

Main Documentation: https://nes-lab.github.io/shepherd

Source Code: https://github.com/nes-lab/shepherd-targets

Main Project: https://github.com/nes-lab/shepherd

The repository contains a collection of target-hardware and mcu-firmwares used by the shepherd-testbed. In the past shepherd had a nRF52-only target but can now leverage an additional FRAM, as demonstrated successfully by the Riotee-Platform.

NOTE: The shepherd testbed has a second target-port (unused) and is looking for ideas. Just contact us if you got ideas.

nRF52 with MSP430FR as FRAM

Hardware v1.3+ uses

  • nRF52840

  • MSP430FR5994 (TI)

  • RTC AB1805

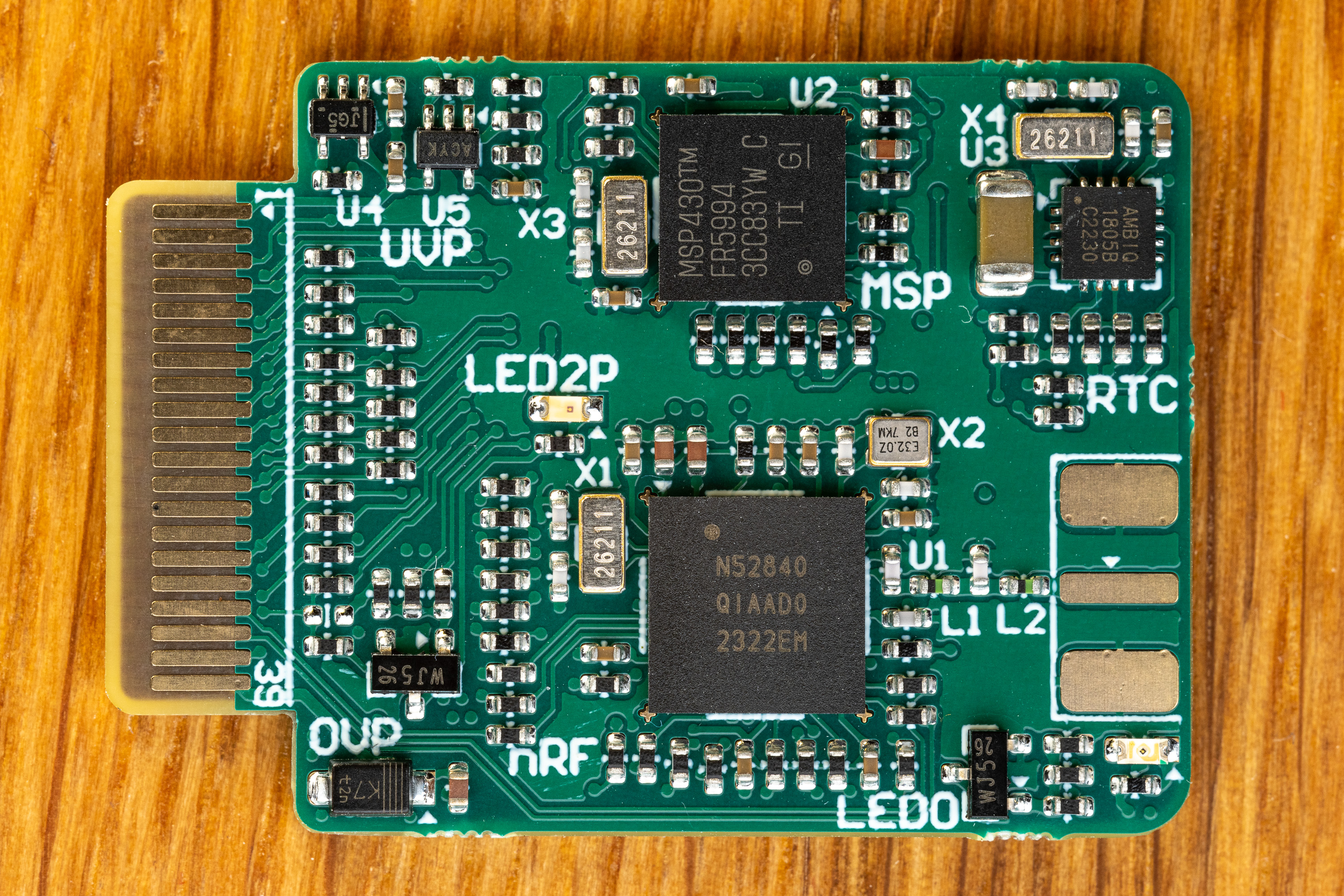

Target_nRF_MSP430

BOM, gerber-files and schematics are available in the PCB-Directory. This folder also contains a guide for testing new target-PCBs.

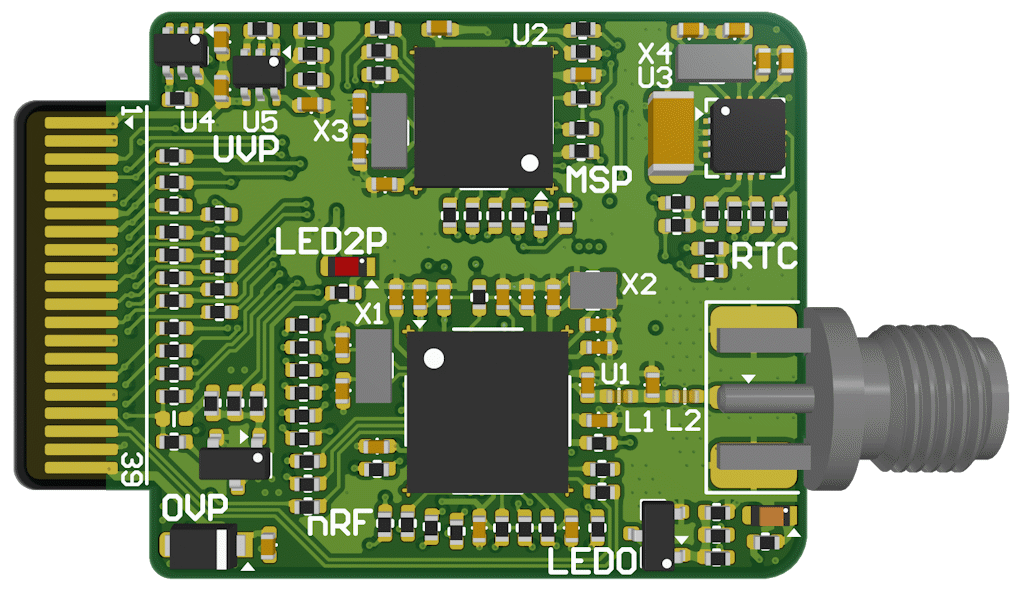

Target_nRF_MSP430_render

Features

  • freedom to use both MCUs as needed (just as radio or FRAM) or disable when not needed (deep sleep)

  • over-voltage protection for V_LV (max 3.9V)

  • under-voltage protection with hysteresis for nRF

  • one debug LEDs with separate supply for minimal impact on pwr-budget

  • one self-powered LED to “burn” energy

  • io pins not interfering with RF (nRF PS v1.6 page 578)

  • LEDs / UART similar to Riotee

  • nRF uses low voltage mode (PSv1.1 page 61)

  • 16x GPIO shared to host, current-limited with 240R star-configuration (every participant has that resistor on its port to also keep data rates >10 MHz)

  • high & low power-good-signal (similar to riotee)

  • SMA-port for external antenna

  • 3rd possible way for reset (external), beside jtag and pwr-cycle

nRF52-Firmwares

  • nrf52_demo_rf: demo implementation for a simple node that sends BLE packets when energy budget allows it

  • nrf52_testable: watches all gpio and reports with UART messages (verification after assembly)

    • ensures that pcb is assembled OK and both MCUs are programmable and show basic functions

    • what is not tested: watchdog, FRAM, RF-Frontend (-> use rf-demo or rf-survey), sleep power consumption

  • nrf52_rf_test: sends out 1 BLE-Packet per second (verify with an app like RaMBLE)

  • nrf52_rf_survey: Link Matrix Generator - TX-Unit - sends packet with every possible P_TX, loops until stopped

  • nrf52_deep_sleep: practically turned off MCU with the lowest possible consumption

  • TODO: nrf52_spi_radio - default implementation to use nRF as a radio frontend

MSP430FR-Firmwares

Getting started

Step by step description for installing all prerequisites to compile the firmware.

nRF52

  • Make sure you have the GNU Arm Embedded Toolchain installed

  • If arm-none-eabi-gcc is not in your path, set the environment variable GNU_INSTALL_ROOT accordingly, e.g.: export GNU_INSTALL_ROOT=/opt/toolchain/ (note the trailing foreslash)

  • Download the nRF5 SDK from here. (You don’t need a SoftDevice) and extract it

  • Set the environment variables SDK_ROOT to the corresponding absolute path, e.g.: export SDK_ROOT=/home/user/nRF5_SDK_17.0.2_d674dde/

  • run make

Refer to the GitHub workflow for how to install the toolchain and build the project.

MSP430

To build the code, you’ll need the gcc toolchain for the MSP430 microcontroller series. Refer to the GitHub workflow for how to install the toolchain and build the project.

Controlling the Node-ID

When an elf-firmware contains a SHEPHERD_NODE_ID, the variable will be patched with the actual target-ID before running the experiment. See the proposed c-file for more information.
